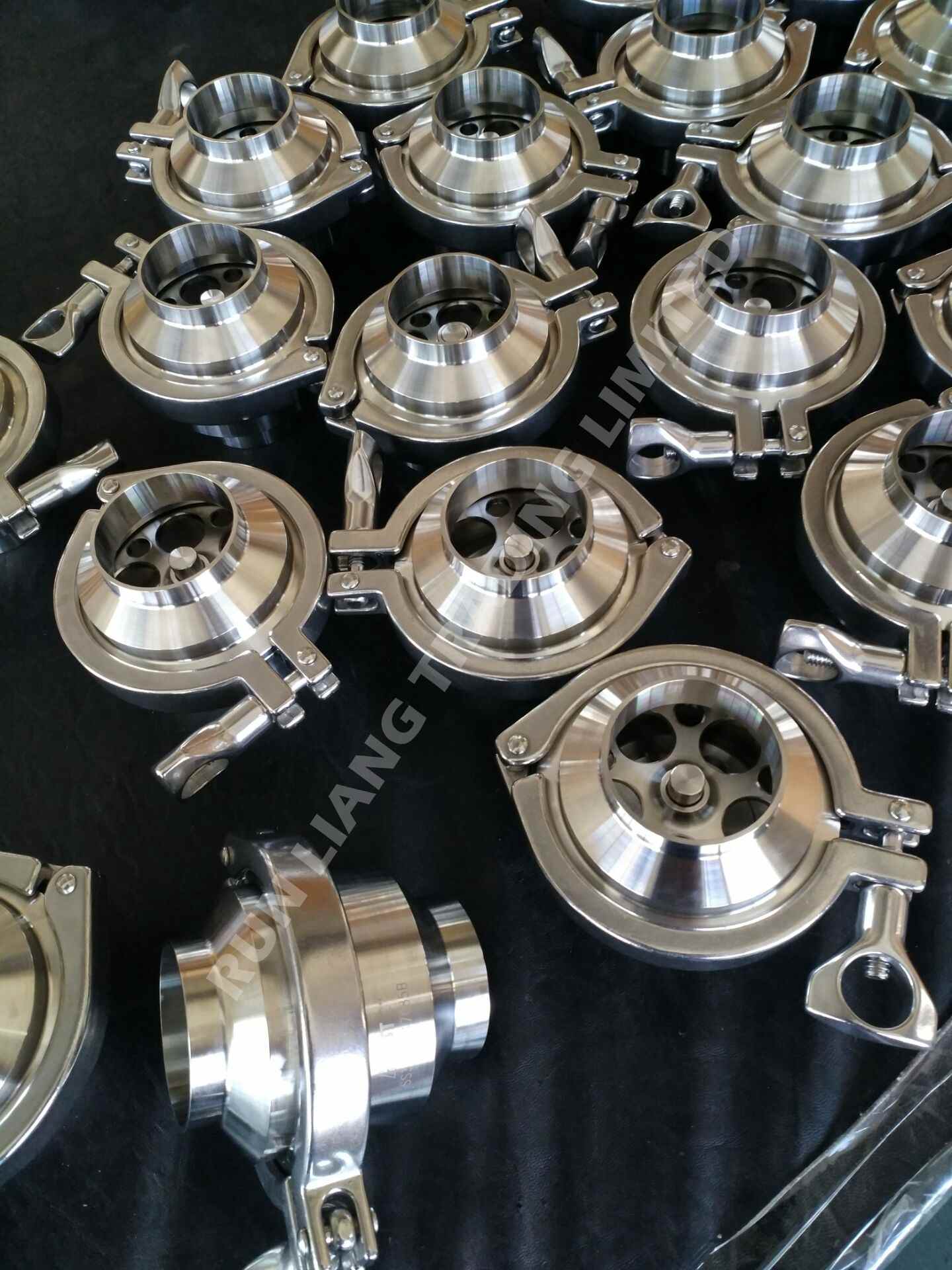

Check Valve (Sanitary):
A check valve, clack valve, non-return valve, reflux valve, retention valve or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Check valves are often part of common household items. Although they are available in a wide range of sizes and costs, check valves generally are very small, simple, or inexpensive. Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem.
Material: Contact with medium-316L, spring-316L
Not contact with medium-304
Standard: 3A, ISO, SMS, DIN
Working Pressure: 0-10 Bar
Installation Way: Vertical Installation
Connecting Way: Welding, Thread, Flange
Surface Treatment: Inner Surface Ra=0.4~0.8um, Outer Surface Ra=0.8~1.6um
Sealing Ring Material: EPDM, color-black, working temperature- (-20~+135℃)
VITON, color-black, working temperature-( -30~+230℃)
SILICONE, color-black, red, transparent, working temperature- (-50~ +180℃)

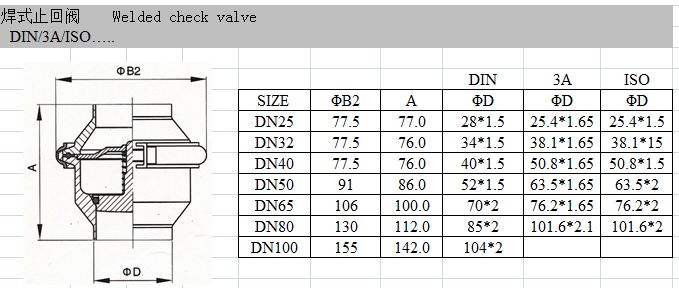

Size
