GI Fitting：
Galvanized pipe fittng(GI fitting), made from carbon steel pipe fitting(BI fitting), is covered by hot-dipped zinc layer. With the feature of strong anti-rust, GI pipe is widely used in water supply project, especially those in tropical rainforest climate area.
Average Zn Coating Thickness: ≤100 Micron (μm)
SPEC
Connection Type: Butt Welded
Standard
American Standard: ASTM A234 ANSI 16.9, ANSI16.28
Grade: WPB , A420,A106
Wall Thickness: SCH5-XXS
Size:1/2"-24" Seamless, 4"-48" Seam-welded
German Standard: DIN2605,2615,2616,2617
Material: CS ST37.0, S235JR
Wall Thickness: 2mm-25mm
Size:1/2"-24" Seamless, 4"-48" Seam-welded
Japanese Standard: JIS2311
Material: CS JIS G3452, SS400
Wall Thickness: FSGP,LG, STD, XS
Size:1/2"-24" Seamless, 4"-48" Seam-welded
Russian Standard: GOST 17375-2001， TOST 17378-2001
Material: CS CT20, 16MN
Size:1/2"-24" Seamless, 4"-48" Seam-welded

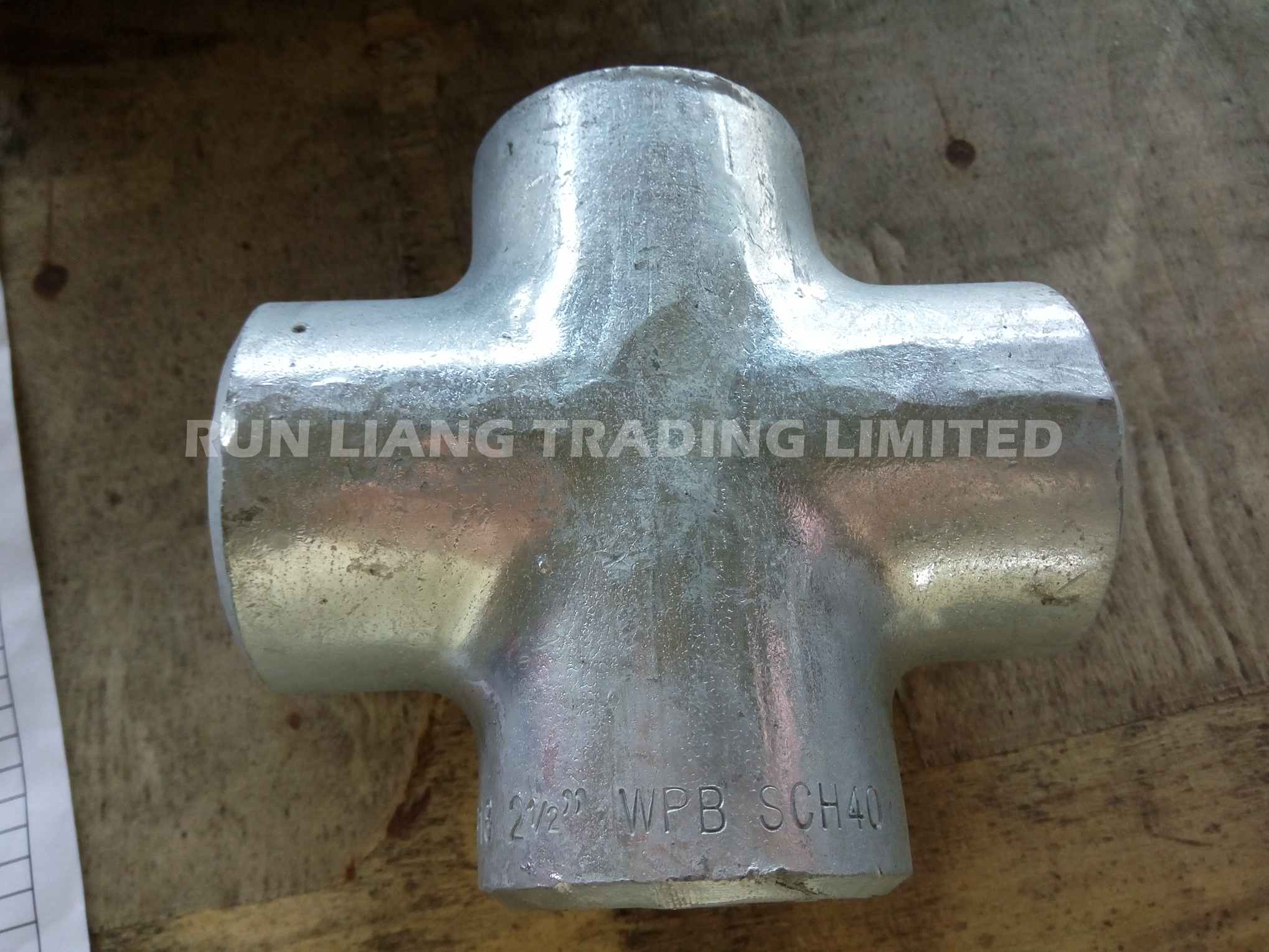

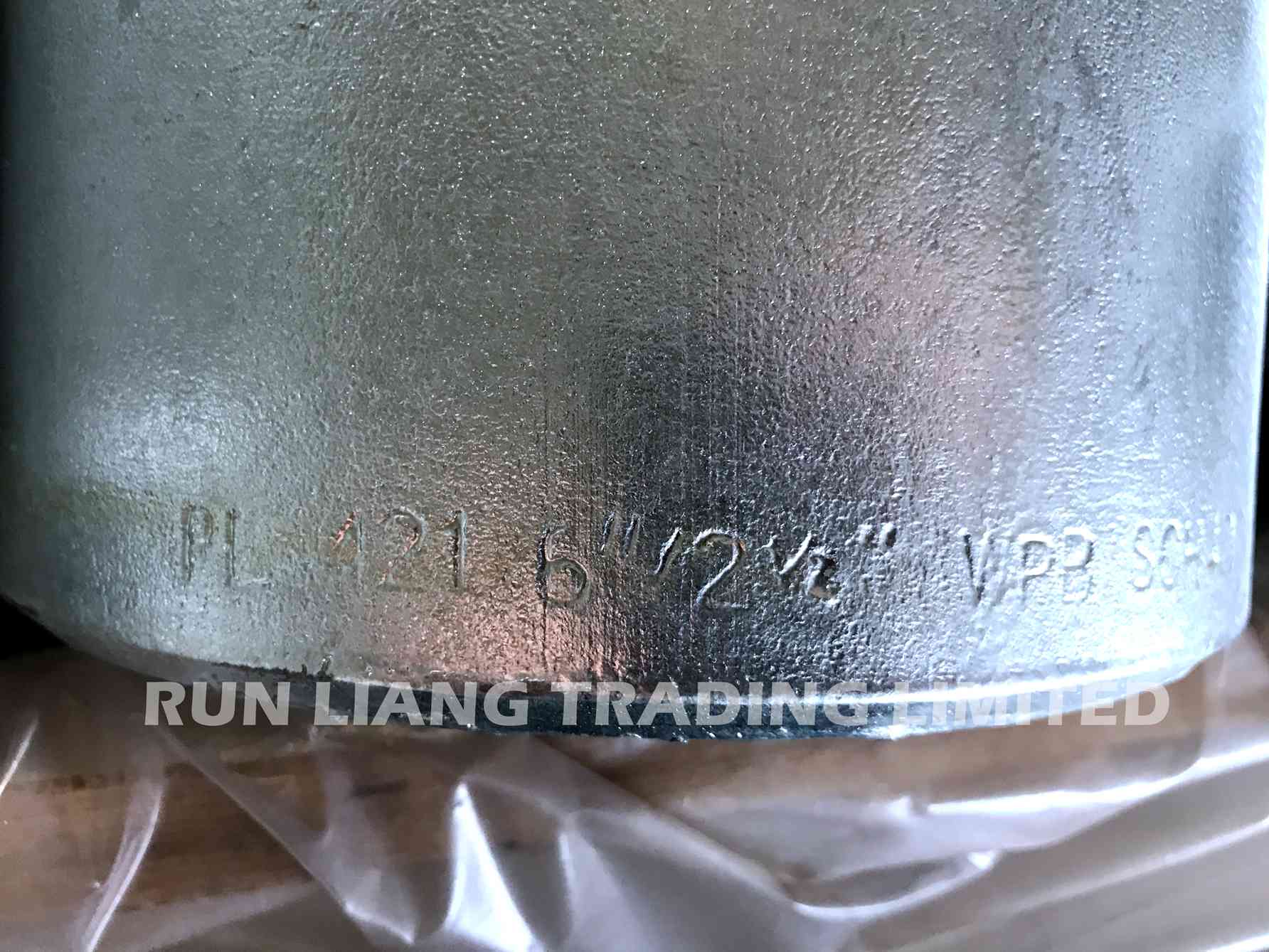

Stencil

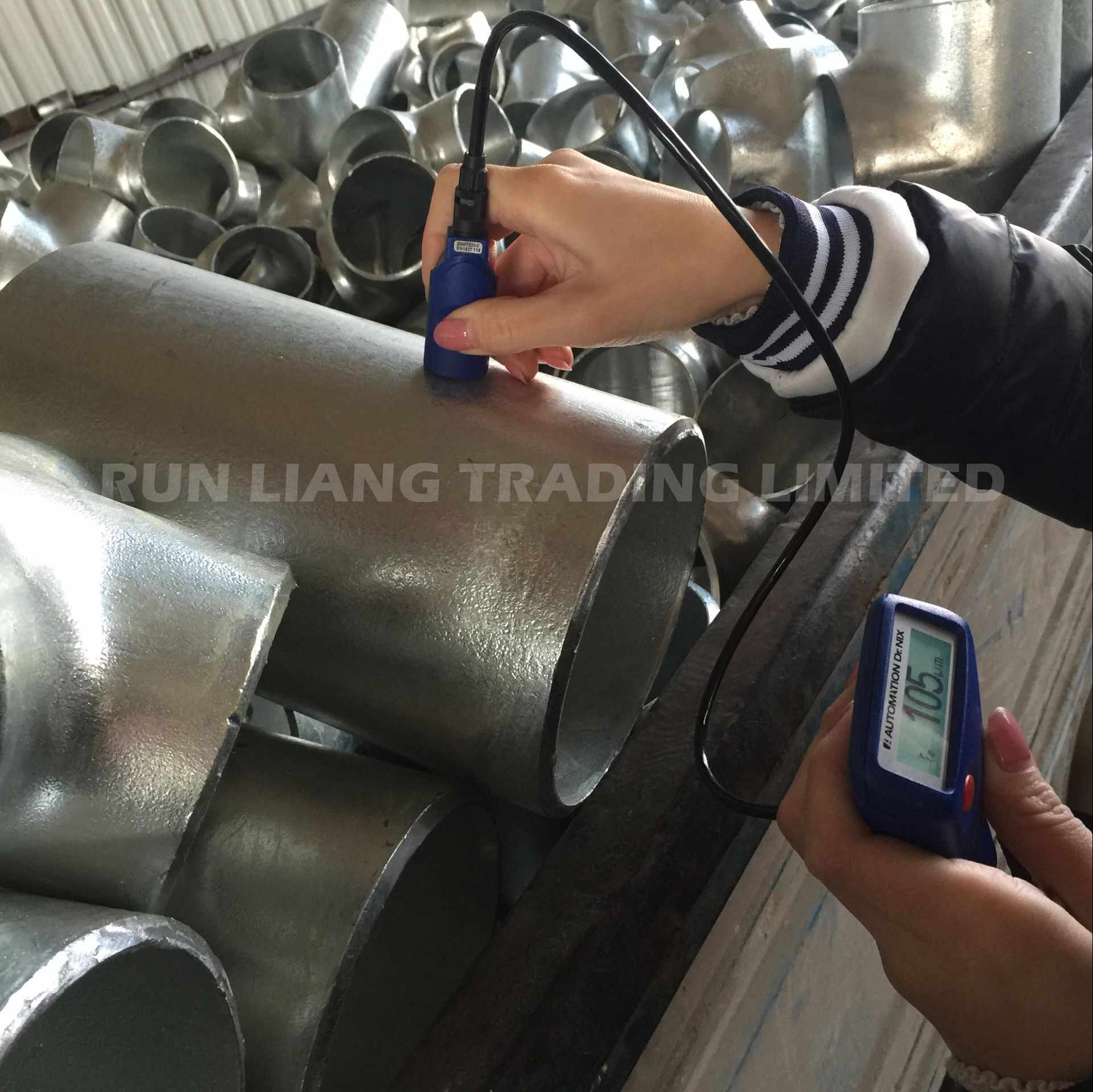

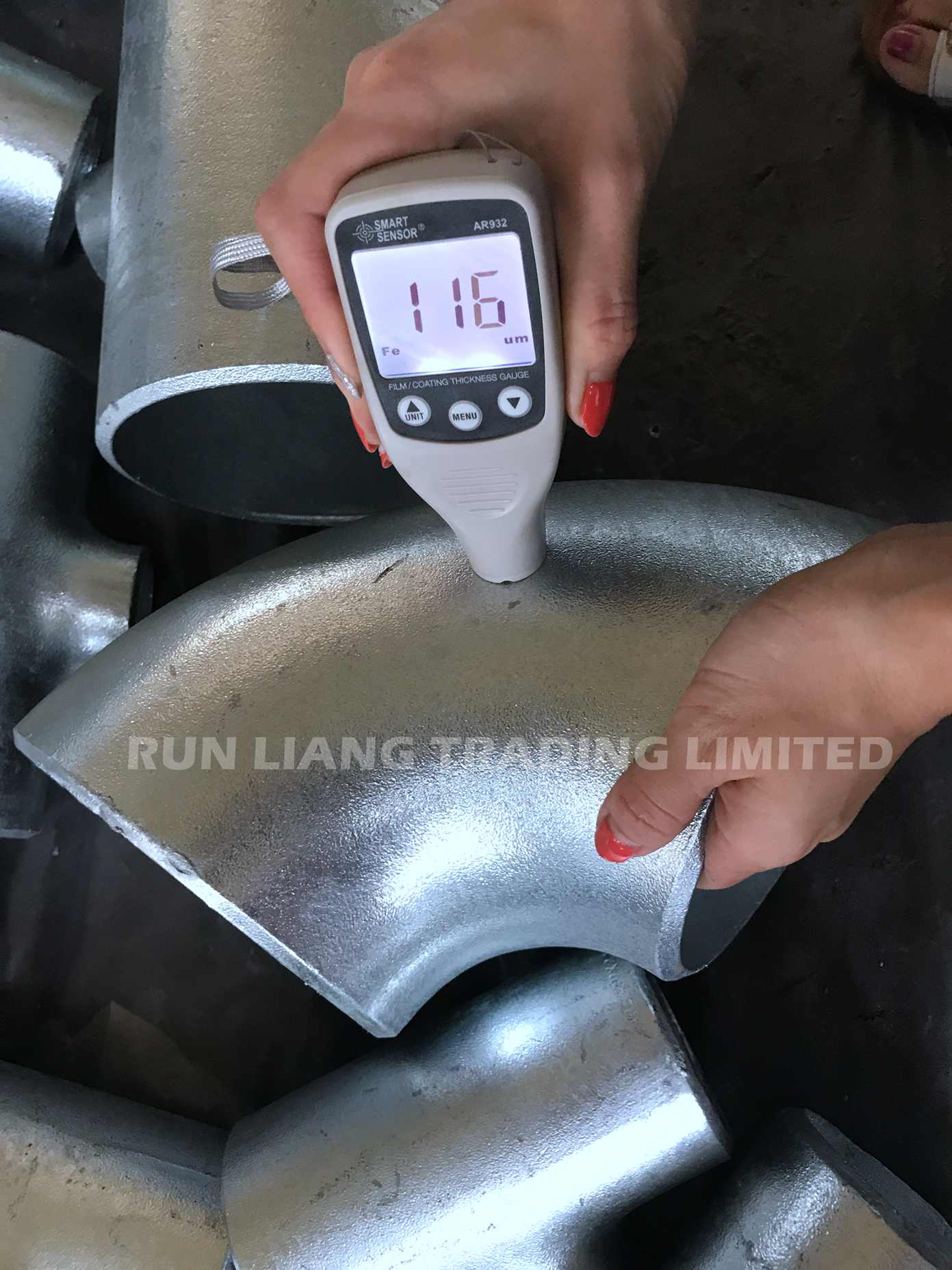

Zn Coating Thickness Inspection

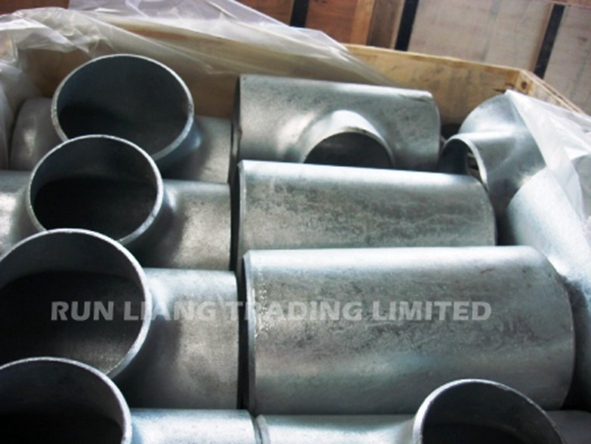

Packing

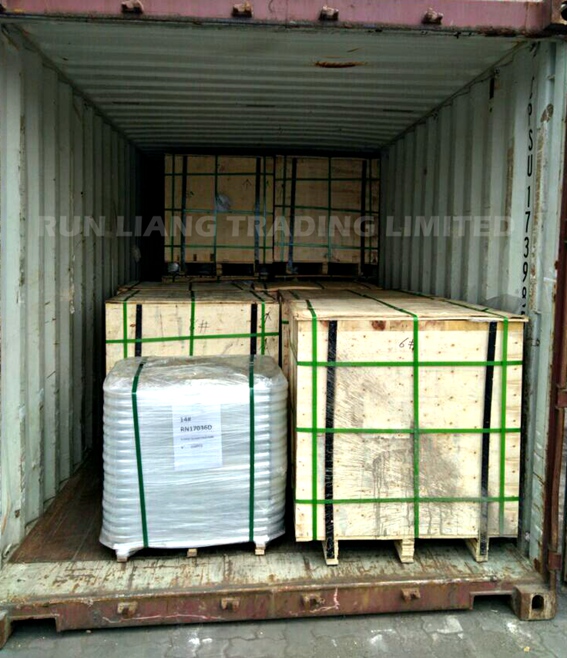

Container Loading
